PC/DC - 52 Inch - BL with BL Blades and LED Light Kit
Image may not reflect selected features

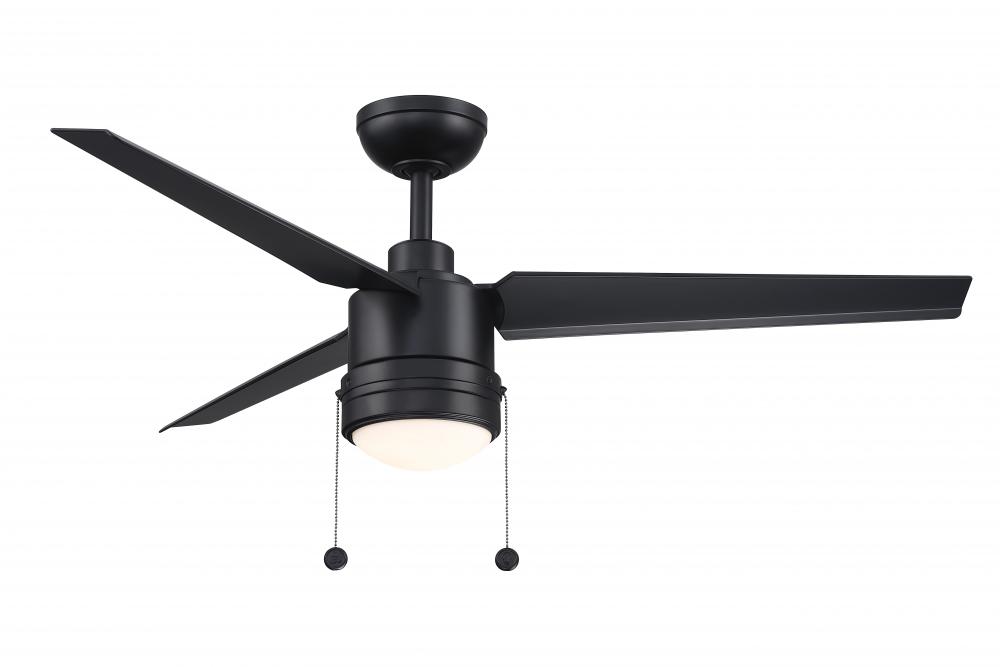

PC/DC - 52 Inch - BL with BL Blades and LED Light Kit (K517)
The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades and LED light kit included. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control
Energy Information at High Speed
Airflow
5874 Cubic Feet per Minute
Electricity Rate
31 Watts (excluded lights)
Airflow Efficiency
190 Cubic Feet Per Minute Per Watt
Downloads
Click Here to View Spec Sheet Details
Click Here to View Owners Manual
Product Specification
Item #
K517
Dimensions
Height: 16.91"
Width: 52.00"
Length: "
Additional product details
Internal #
K517
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Traditional
Option
Wet Rated
Voltage
10-99
Lumens
1101-1600
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
9w
Category
Fan-Uni
Finish
Black
Option
Wet
Family
Pc/dc
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
16 speed DC motor with reverse switch, fan and light control , CHINA , Energy Star Most Efficient 2022 , Limited Lifetime Motor Warranty , Pull Chain Control , Set of (3) 52 inch wet rated blades and 18 watt LED light kit included
Air Flow CFM
5874
Air Flow Efficiency
190
Amperage
0.47
Blade Finish
Black
Blade Pitch
13
Blade Span
52
Bulb Type
18 Watt LED Module
Canopy
6.3 Dia x 2.56 H
Diameter
7.52
Down Rod Included
6
Electricity Used
31
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1500
Material
Composite
Motor Fan Speed
16
Motor RPM
168
Motor Size
100 X 30
Motor Type
DC
Ship Carton Height
14.57
Ship Carton Length
27.95
Ship Carton Width
16.14
Ship Weight
21.83
Sold By
Each
Warranty
Limited Lifetime
Weight
15.65
Airflow Efficiency Low
832
Airflow Efficiency Medium
419
Avg Airflow Efficiency
188
Avg CFM Energy
3649
Avg Energy Use Watts
19
Avg Estimated Yearly Energy Cost
5
Avg Estimated Yearly Energy Cost on HIGH
9
Blade Finish Method
Painted
Blade Material
Composite
Blade Pitch Degrees
13
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.3 Dia
Canopy Height
2.56 H
Cap Included
No
Carton Cubic Feet
3.8
Case Height
14.57
Case Length
27.95
Case Quantity
1
Case Weight Pounds
21.83
Case Width
16.14
CEC Uploaded
Yes
Ceiling To Blade Edge
10.24
Ceiling To Bottom
16.91
CFM Low
1764
CFM Medium
3723
Compatible Accessories
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Country of Origin
China
CRI
90
Current Draw High
0.47
Current Draw Low
0.07
Current Draw Medium
0.17
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
7.52
Included Control Type
Pull Chain
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
31
Maximum Slope Degree
27
Motor Finish Method
Painted
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
168
RPM Low (II)
53
RPM Medium (IV)
111
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
2
Watts Medium
9
Watts Per Bulb
18
Wet Rated
Yes


Other Details:
  • 3 Speed Dc Motor With Reverse Switch, Fan And Light Control
  • Energy Star Most Efficient 2022
  • Limited Lifetime Motor Warranty
  • Pull Chain Control
  • Set Of (3) 52 Inch Wet Rated Blades And 18 Watt Led Light Kit Included
