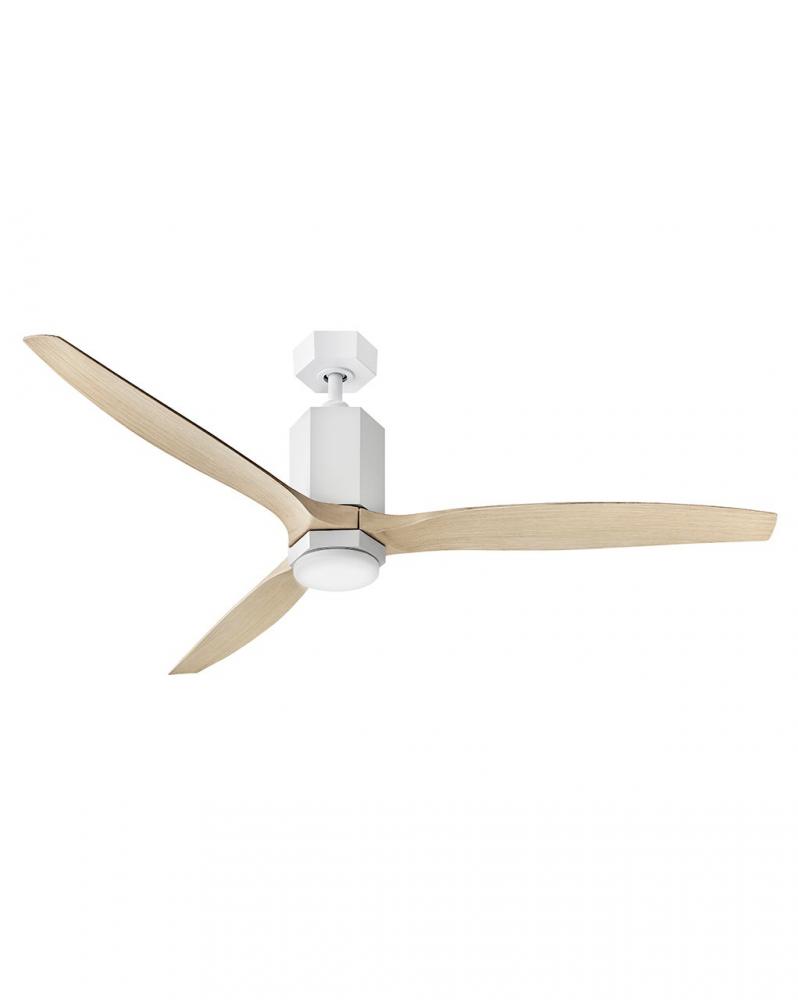

Facet 60" LED Dual Mount Smart Fan (9WYA1)

View the many sides of Facet. Interesting angles combine with bold metal features to create an edgy and contemporary profile that is unpretentious yet unforgettable.

Downloads

Click Here to View Spec Sheet Basic

Click Here to View Spec Sheet Details

Click Here to View Installation Sheet

Product Specification

Item #

9WYA1

Dimensions

Height: 16.75"

Width: 60.00"

Length: "

Additional product details

Internal #

9WYA1

Category

Fan

Finish

Matte White

Style

Modern

Family

Facet

Glass

Etched Opal

Voltage

120 V

Number of Bulbs

1 Bulbs

Air Flow Efficiency

6212

Amperage

0.38

Blade Finish

Natural

Blade Pitch

Blade Span

Blades Included

Yes

Bulb Dimmable

Yes - CL Type Dimmer (SSL7A)

Bulb Hours

50000

Bulb Type

LED

Introduction Date

10/01/2023

Kelvin

3000

Light Kit Included

Yes

Lumens / Light Output

1320

Material

Steel

Motor Size

DCS-15NS

Motor Type

Ship Carton Height

9.25

Ship Carton Length

Ship Carton Width

15.5

Ship Weight

16.56

Vendor Ship Method

Parcel

Weight

16.09

Airflow Avg

4069

AMPS Avg

0.22

Avg Energy Use

Blade Material

Composite

Blade Options Available

Blade To Ceiling Height

12.5

Blades Reversible

Bulb CRI

Bulb Included

Yes

Control Type

HIRO Control - 6 Speed Reversing

Country of Origin

China

DM Airflow Avg

4701

DM Airflow High

7136

DM AMPS Avg

0.16

DM AMPS High

0.27

DM Avg Energy Use

DM Efficiency Avg

174

DM Efficiency High

279

DM Energy Cost Avg

DM Energy Cost High

DM Energy Use High

DM RPMS Avg

108

DM RPMS High

170

Dual Mount

Yes

Efficiency Avg

203

Efficiency High

237

Energy Cost Avg

Energy Cost High

Energy Use High

26.2

Fan Control

Yes

Flush Mount Fan

Incandescent Equivalency

100 W

Light Kit Adaptable

Light Source

Integrated LED

Location Rating

Damp Rated

Max Wattage

16 W

Motor Fan Speed

Number of Blades

Operating Frequency

Prop 65 Description

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Receiver Included

Yes

Reversing Control

Yes

RPMS Avg

RPMS High

150

Safety Rating

UL Approved, C-US Approved

Single Power Switch

Sloped Ceiling Adaptable

Stand By Power

0.2

Title 24

WIFI Control Included

Yes

WIFI Control Optional

Other Details:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement
Downrod Adapter Kit Included
Fan Control included, HIRO Control - 6 Speed Reversing
Fan mounts directly to canopy or with an included downrod for dual mount capability
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
This item includes a light kit cover
WiFi compatible with included fan control
