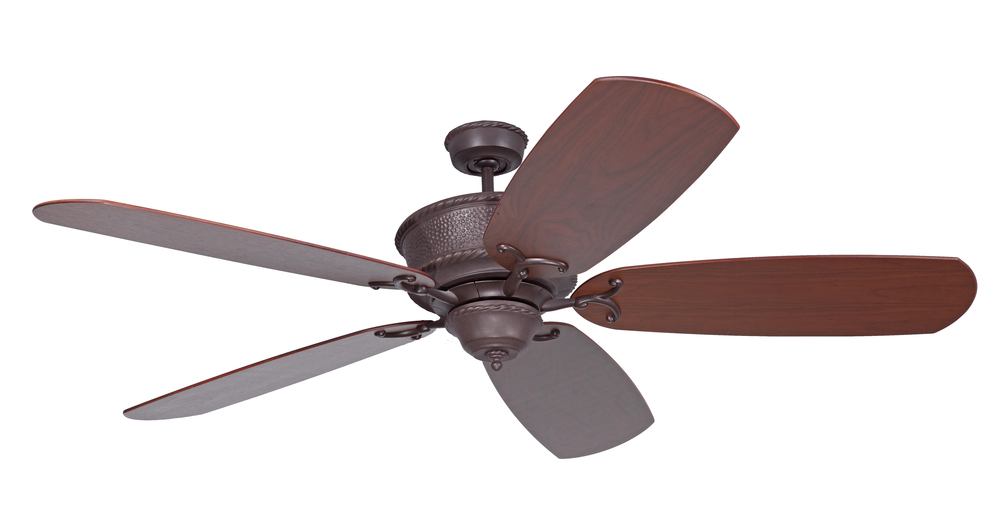

70" DC Riata Grande Ceiling Fan (Blades Sold Separately)
Image may not reflect selected features
/vendors/20/large/dcrt70ag_bss.jpg
additional image
70" DC Riata Grande Ceiling Fan (Blades Sold Separately) (TAL2)
The new DC Riata Grande now offers blade selections from 54" to 70".
Energy Information at High Speed
Airflow
8655.69 Cubic Feet per Minute
Electricity Rate
90 Watts (excluded lights)
Airflow Efficiency
210.55 Cubic Feet Per Minute Per Watt
Downloads
Click here to view Installation Guide
Click Here to view Spec Sheet
Click Here to view Spec Sheet
Product Specification
Item #
TAL2
Dimensions
Height: 16.50"
Width: 70.00"
Additional product details
Internal #
TAL2
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Bronze
Style
Traditional
Option
Damp Rated
Number of Blades
5 Blades
Category
Customizable Fan - Select Blades (Sold Separately)
Subcategory
Fan Motor Without Blades
Finish
Aged Bronze Textured
Style
Traditional, Outdoor
Option
cETLus Approved
Family
Riata Grande 70
Voltage
12060
Additional Info
Country of Origin: China
Air Flow CFM
8655.69
Air Flow Efficiency
210.55
Amperage
0.58
Blade Pitch
14
Blade Type
Type1, Type4
Blades Included
Sold Separately
Canopy
2.36 x 6
Down Rod Included
1
Electricity Used
90
Introduction Date
06/01/2015
Light Kit Included
No
Material
Steel / Resin Silicon Steel
Max Height
16.5
Motor Fan Speed
6
Motor RPM
139
Motor Size
153 x 16
Motor Type
DC
Order Minimum
1
Ship Carton Height
10.16
Ship Carton Length
23.03
Ship Carton Width
15.16
Ship Weight
21.61
Sold By
Each
Sold In Pack Of
1
Special Features
Blades Sold Separately , Dual Mount (Flat or Angled Ceiling) , Energy Saving, 6Speed Reversible DC Motor , IDC2 Remote and Wall Controls Included , Light Kit Adaptable (Sold Separately) , Limited Lifetime Warranty , Remote On/Off or Dimming , Sophisticated DC Motor requires automatic 7minute calibration period upon installation. The remote and wall controls are inoperable during that time, after which the fan, remote control and wall control (if applicable) with be fully operational. , Suitable for Damp Locations
Warranty
Limited Lifetime Warranty
Wire Included
80
AirflowEfficiency High
218.35
AMPS High Max
0.49
Blade Count
5
Blade Features
Blades Sold Separately
Blade Sweep Options
54 / 56 / 68 / 70
Blade Tip
Picture Frame
Blade To Ceiling Height
11
Bulb Dimmable
No
Bulb Included
No
Canopy Height
2.36
Canopy Width
6
cETLus Approved
Yes
CFM High
9113
CFM High Max
9392
CFM Low
2943.5
CFM Low Max
3185
Control Features
IDC2 Remote and Wall Controls
Control Method
Remote
Control Status
Included
Control Type
Wall (2) and Clamshell
Control Types Included
Remote Control; Wall Control
Country of Origin
China
Downrod 1 Length
6
Downrod 2 Length
3
Downrod Diameter
0.5
Downrod Quantity
1
ElectricityUsed High
43.014
ElectricityUsed Low
3.435
Energy Guide CFM
6221
Energy Guide CFM Watts
238
Energy Guide Est Yearly Energy
7
Energy Guide Watts
26
Energy Star
No
Finish Group
Bronze
Glass/Shade Included
No
Housing Height
6.81
Housing Size
13
IP Cubic
2.05
Leadwire Length
80
Light Kit Adaptable
Yes
Light Kit Features
Light Kit Adaptable (Sold Separately)
Light Kit Options
Bowl Light Kits, Universal Light Kits, or Customize Your Own (Universal Fitters and 2 1/4" Glass)
Motor Diameter
153
Motor Height
16
Motor Material
Silicon Steel
MotorRPM 1
142.2
MotorRPM 2
118.98
MotorRPM 3
98.88
MotorRPM Low
43
Mounting Location
Damp
Mounting Method
Dual Mount (Flat or Angled Ceiling)
Number of Blades
5
Number Of Downrods
2
Number of Downrods 2 Included
1
Prop 65
Yes
Reverse Location
Receiver
Reverse Method
Remote
Reversible Motor
Yes
Safety Rating
CETL Damp
Secondary Downrod Quantity
1
Slope Mount
Yes
Up Down Capability
No
Watts
41.11
Call for Price
Qty:
BASE PRICE:
$
398
00
/ / 1
($398.00 / 1)
Call to Place Order
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 1 items available.
