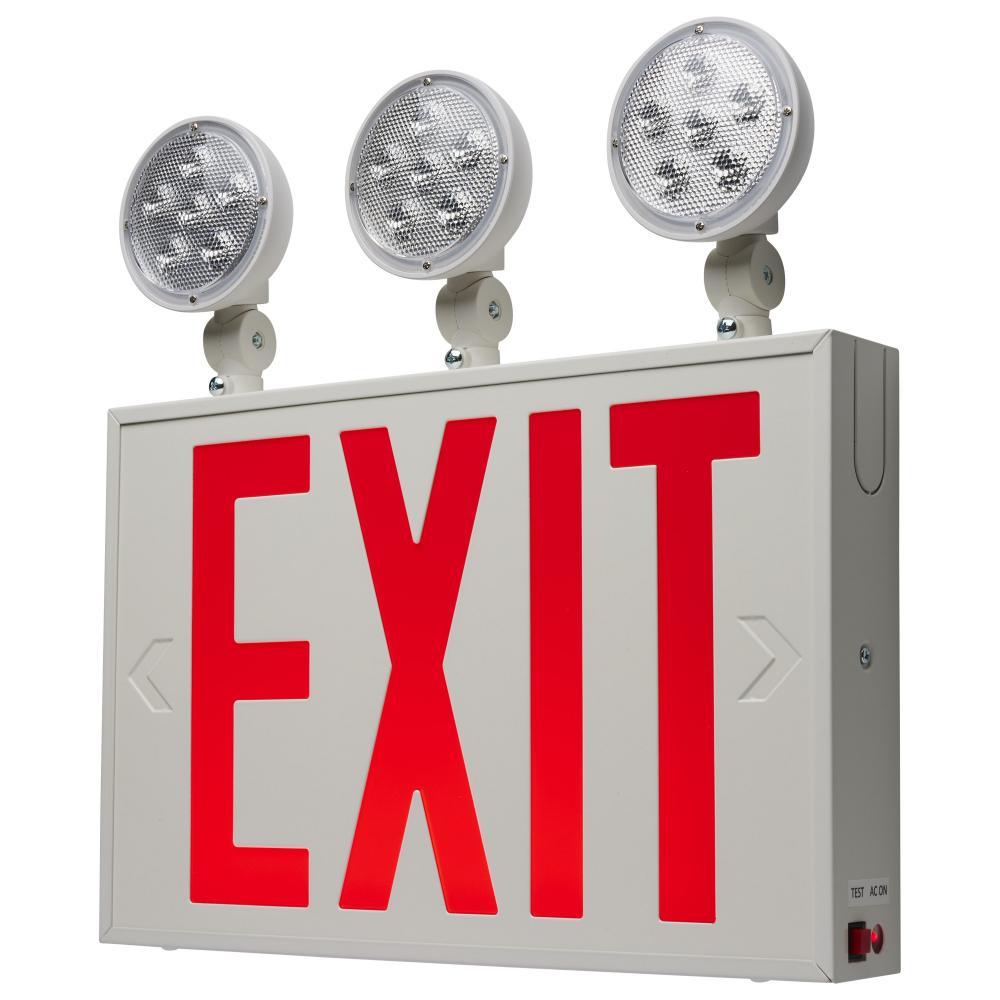

Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Tri Head, Single/Dual (X3Q5P)
Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120/277V, Tri Head, Single/Dual Face, Universal Mounting, Steel/NYC
Product Specification
Item #
X3Q5P
Dimensions
Height: 14.88"
Width: 14.56"
Additional product details
Internal #
X3Q5P
Category
Utility
Subcategory
Exit Signs
Finish
White
Option
LED , Prop 65
Category
Lighting Products
Sub Category
Exit & Emergency
Style
Utility
Additional Info
Input Wattage: 3.0W; Output Wattage: 1.6W; Energy Used in Maintenance Mode: 3.0W
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Non-Dimmable
Harmonized Codes
9405.61.6000
Lumens
330L
Ship Carton Height
2.76
Ship Carton Length
15.79
Ship Carton Width
15.16
Warranty
2 Year Limited
Amps
0.025/0.108A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
Ni-Cad
CA Prop-65
Lead
Carton Cubic Feet
0.3823
Cartons Per Unit
1
CCT Selectable
No
CEC
T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
70
Depth
2.31
Efficacy
110.00 LPW
FCC Compliant
No
Feature 1
Red Lettering
Feature 2
Single or Dual Face
Feature 3
Knockout Chevron Directional Arrows
Feature 4
Three Adjustable Light Heads
Feature 5
Wall or Side Mounting Options
Feature 6
20-Gauge Steel Housing
Feature 7
Damp Location
Feature 8
90 Minute Backup Run Time
Feature 9
2 Year Warranty
Finish Family
White
Has Emergency Battery
Yes
Incandescent Equivalent
25W
Includes
Mounting hardware and accessories
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Keep your building safe and secure with SATCO|NUVO's NYC Approved LED Exit and Emergency light Combo 67-124. This top-of-the-line exit sign includes integrated emergency lights, providing ample lighting during power outages or other emergencies. With c
Material
Steel
Mounting Procedure
Wall Side
Operating Frequency
50/60Hz
Operating Temprature
+10C (+50F) to +40C (+104F)
Pack Type
Box
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Keep your building safe and secure with SATCO|NUVO's NYC Approved LED Exit and Emergency light Combo. This top-of-the-line exit sign includes integrated emergency lights, providing ample lighting during power outages or other emergencies. With configur
Safety Listing
ULus - Certified
Short Description
EXIT/LIGHT TH - RED - NYC
Sloped Ceiling Compatible
No
Specification Notes
20-gauge Steel, 3.6V AA800mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 8 in.; Letter Stroke: 1 in.; Path of Egress: 6 Ft.
Temperature (CCT)
5700K
Title 20 Compliant
Yes
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
6.61
