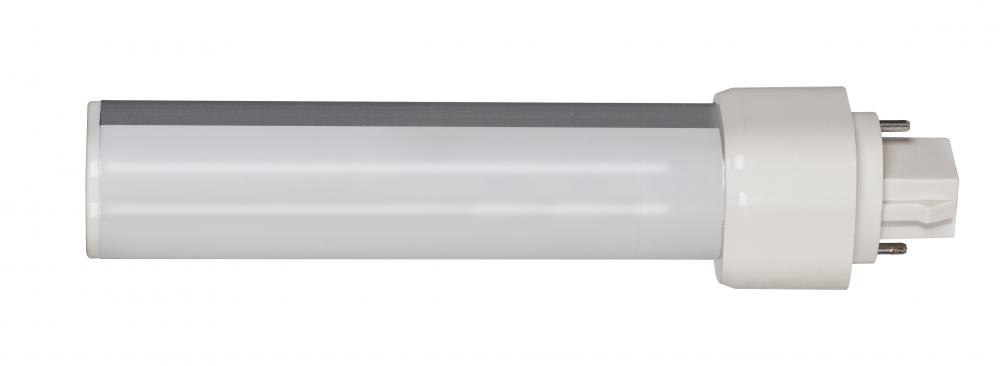

9 Watt LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; (WM818)

9 Watt LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Horizontal; Type B; Ballast Bypass

Product Specification

Item #

WM818

Dimensions

Width: 1.09"

Additional product details

Internal #

WM818

Category

LED

Sub-Category

LED CFL Replacements Pin Based

Volts

120V-277V

Bulb Dimmable

Non-Dimmable

Bulb Hours

50000

Bulb Kelvin

3000K

Bulb Shape

Diameter

1.09

EA Length

1.5

Harmonized Codes

8539.52.0091

Length

6.63

Lumens

950L

Shap Carton Width

1.5

Ship Carton Height

6.77

Ship Weight

0.26

Warranty

5 Year Limited - 10 hr per day

Weight

0.17

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass- Direct wire only 100V-277V

Beam Spread

120

Bulb ANSI Base

G24d

Bulb Base

G24d (2-Pin)

Bulb Finish

Frost

Burning Position

Horizontal

Carton Cubic Feet

0.008800000000000001

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Warm White

Country Of Origin

China

CRI

DLC Approved

Efficacy

105.56 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Flourescent Equivalent

18W/26W

Incandescent Equivalent

40W

Installation Notes

2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.

Lamp Ballast Type A/B/C

Type B

Lamp Filament

LED

Lens

Yes

Lens Finish

Frost

Location Rating

Damp

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.9

Quantity In Pack

R9 Value

RoHS Compliant

Yes

SDS class

LED_Lamp

Short Description

9WPLH/LED/830/BP/2P

Style

Transitional

Technology

LED

Title 20 Compliant

Wattage Selectable

Watts

Finish Family

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

/ / 1

($13.89 / 1)

Call to Place Order

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 1132 items available.
