ItemDetail | Pine Grove Electrical Supply, Inc

No Image
Available

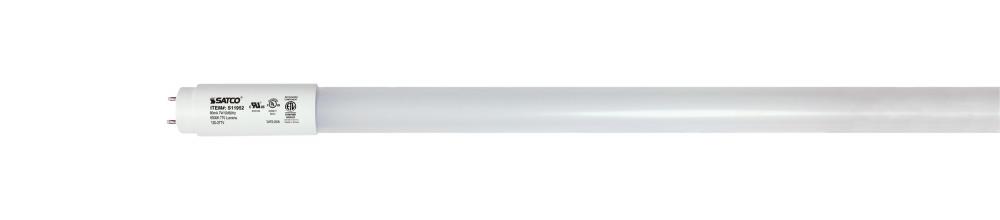

7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens;

Image may not reflect selected features

7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; (LNE9W)

7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 6500K; 50000 Average Rated Hours; 770 Lumens; Type B Ballast Bypass

Product Specification

Item #

LNE9W

Dimensions

Width: 1.10"

Additional product details

Internal #

LNE9W

Category

LED

Sub-Category

LED T8

Volts

120V-277V

Bulb Dimmable

Non-Dimmable

Bulb Hours

50000

Bulb Kelvin

6500K

Bulb Shape

Diameter

1.1

EA Length

Harmonized Codes

8539.52.0051

Length

17.8

Lumens

770L

Shap Carton Width

1.1

Ship Carton Height

1.1

Ship Weight

0.29

Warranty

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight

0.22

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass

Beam Spread

160

Bulb ANSI Base

G13

Bulb Base

Medium Bi Pin

Bulb Finish

Frost

Burning Position

Universal

Carton Cubic Feet

0.0126

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Daylight

Country Of Origin

China

CRI

DLC Approved

Efficacy

110.00 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Feature 1

Lawful for sale in California

Feature 2

For use Indoors

Feature 3

Operating Temperature: -25C (-13F) to a maximum of +40C (+104F)

Feature 4

Non-Dimmable

Feature 5

Minimum Order Quantity 25

Flourescent Equivalent

15W

Housing Color

White

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

Installation Notes

Not for use in vapor tight fixtures.

IOT Enabled

IP Rating

IP20

Lamp Ballast Type A/B/C

Type B

Lamp End Type

Single Ended;Double Ended

Lamp Filament

LED

Lens Finish

Frost

Lens Material

Glass

Location Rating

Damp

Long Description

Satco's S11952 7-watt, 18 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000

Material

Glass / Plastic

Nominal Length

NSF Approved

ETL Sanitation listed (conforms to NSF)

Operating Frequency

50/60Hz

Operating Temp

-25C (-13F) to +40C (+104F)

Pack Type

Sleeve

Power Factor

0.9

Quantity In Pack

RoHS Compliant

Yes

Romance Copy

Satco's 7-watt, 18 inch, LED T8 bulb is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and a medium bi pin base. This frosted bulb is versatile and delivers 50,000 hours o

SDS class

LED_Lamp

Shatter Proof Text

PET Coated

Short Description

7T8/LED/18-865/BP

Style

Utility

Surge Protection

Built-in-surge protection - 0.7KV

Technology

LED

Title 20 Compliant

Total Harmonic Distortion

25%

Wattage Selectable

Watts

Finish Family

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

/ / 1

($11.57 / 1)

Call to Place Order

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 551 items available.
