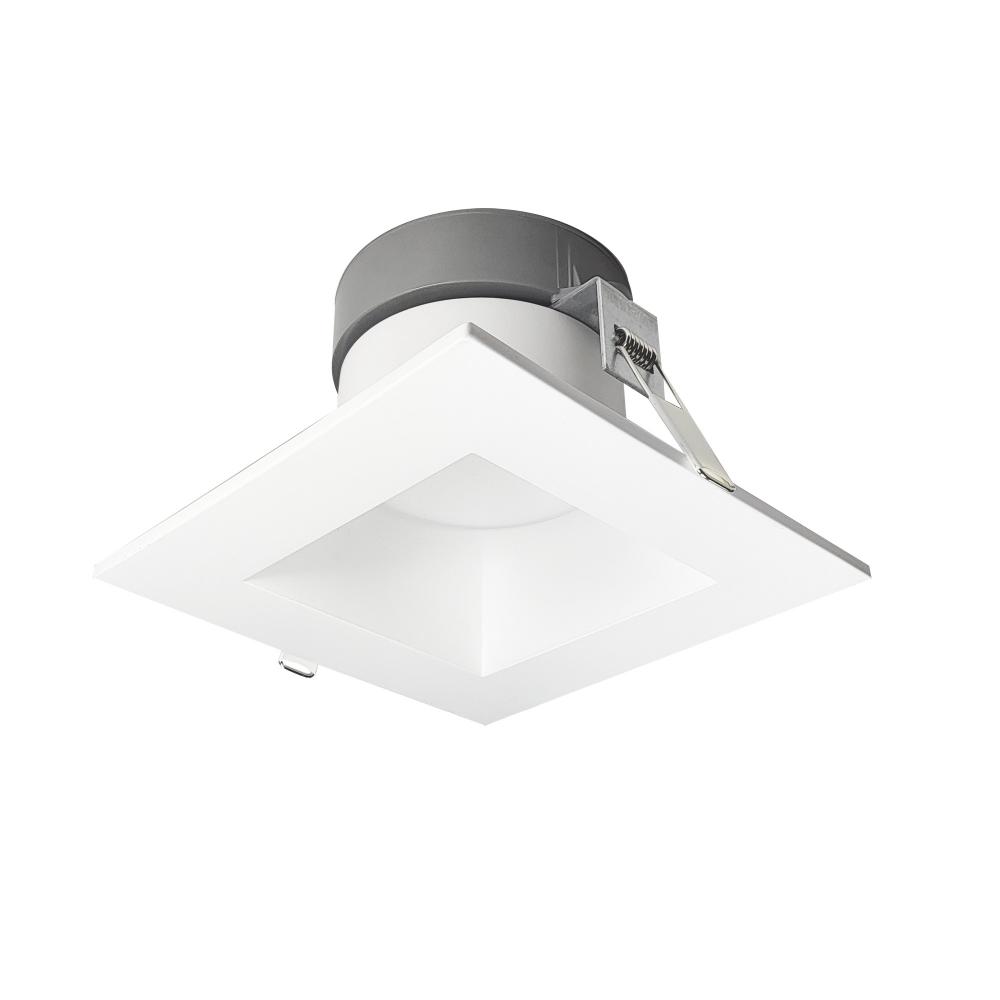

6" Quartz Square Can-less LED Downlight with Selectable Lumens & CCT, 120-277V input, Up to
Image may not reflect selected features
/vendors/104/large/NQZ2-66TWTW-MPW.jpg
additional image
6" Quartz Square Can-less LED Downlight with Selectable Lumens & CCT, 120-277V input, Up to (1JE05H)
6" Quartz luminaires are architectural and commercial-grade LED high-lumen downlights. Each luminaire includes two tunable switches: Selectable Lumens allows the end user to determine the wattage input, and Selectable CCT allows changing the color temperature appearance. Downlights include two tension steel spring clips, which allow the luminaires to be installed without any frame-in or housing for easy installation.
Rating: IC
Input Voltage: 120-277VAC
Lumens / Wattage: Selectable Lumens (1300lm / 12W; 1750lm / 16W; 2150lm / 20W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Dimming: 0-10V
Finish: Matte Powder White
Accessories: New construction frame-in (NQZ-6S-F)
Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV)
Listing: cETLus Listed for Wet Locations
Downloads
Spec Sheet
Sales Sheet
Instruction Sheet
Product Specification
Item #
1JE05H
Dimensions
Height: 4.63"
Width: 7.63"
Additional product details
Internal #
1JE05H
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Option
Title 24
Category
Recessed
Product Line
LE80
Est. Shipping Wt.
4
Length
8
Lumens / Light Output
Selectable Lumens (1300lm / 1750lm / 2150lm)
Ship Carton Height
5.375
Ship Carton Length
8.5
Ship Carton Width
8.25
Weight
2
CCT
Selectable CCT (3000K / 3500K / 4000K)
CEC Database
Y
CEC Item Number
NQZ2-66TWTW-***
CEC Substitute Item
NQZ2-61TWTW-MPW
Contains Battery
N
Country of Origin
CHN
CRI
90
DLC Listed
No
Master Box H
12
Master Box L
18
Master Box Qty
8
Master Box W
18
Master Box Wt.
21
Product Family
Quartz
Safety Listing
cETLus
Wattage
Selectable Wattage (12W / 16W / 20W)


Other Details:
  • 2.4
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
113
91
/ / 1
($113.91 / 1)
Call to Place Order
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 1 items available.
