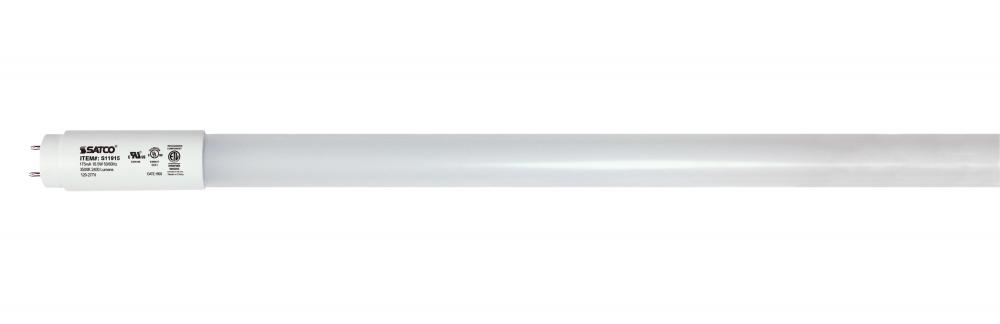

18.5 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; (LNE8W)

18.5 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Product Specification

Item #

LNE8W

Dimensions

Width: 1.00"

Additional product details

Internal #

LNE8W

Category

LED

Sub-Category

LED T8

Volts

120V-277V

Bulb Hours

50000

Bulb Kelvin

3500K

Bulb Shape

Diameter

EA Length

Harmonized Codes

8539.52.0051

Length

Lumens

2400L

Shap Carton Width

7.56

Ship Carton Height

4.92

Ship Weight

0.85

Warranty

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight

0.49

Additional Info

Installation protection - will not light if ballast is not bypassed.

BAA Compliant

Ballast Bypass Direct

Ballast Bypass

Ballasting Requirements

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread

180

Bulb ANSI Base

G13

Bulb Base

Medium Bi Pin

Bulb Finish

Frost

Burning Position

Universal

Carton Cubic Feet

1.0332

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Color Temprature

Neutral White

Country Of Origin

China

CRI

DLC Approved

Yes

DLC Classification

Standard

DLC ID

PLD6BIXNDD9U

DLC Primary Use

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy

129.73 LPW

Enclosed Fixture Use

Yes

Enclosure Rating

Enclosed Rated Lamp

FCC Compliant

Yes

Feature 1

Neutral white light

Feature 2

Damp rated for indoor use

Feature 3

Enclosed Rated Lamp

Feature 4

L:48.00 D:1.00

Feature 5

T8, Frosted Finish

Feature 6

Flicker Free - Less than 2%

Flicker Free

Yes

Flourescent Equivalent

32W

Housing Color

White

Incandescent Equivalent

90W

Installation Notes

Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring

Lamp Ballast Type A/B/C

Type B

Lamp End Type

Single Ended;Double Ended

Lamp Filament

LED

Lens

Yes

Lens Finish

Frost

Lens Material

Glass

Location Rating

Damp

Long Description

SATCO|NUVO's S11915 18.5-watt T8 LED frosted tubular bulb offers neutral white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterp

Material

Glass

Nominal Length

NSF Approved

ETL Sanitation listed (conforms to NSF)

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Sleeve

Power Factor

0.92

Quantity In Pack

R9 Value

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's 18.5-watt T8 LED frosted tubular bulb offers neutral white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof pr

SDS class

LED_Lamp

Shatter Proof Text

PET Coated

Short Description

18.5T8/LED/48-835/LF/BP

Style

Utility

Surge Protection

Built-in-surge protection - 0.7KV

Technology

LED

Title 20 Compliant

Total Harmonic Distortion

20%

Wattage Selectable

Watts

18.5W

Finish Family

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

/ / 1

($14.59 / 1)

Call to Place Order

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 413 items available.
