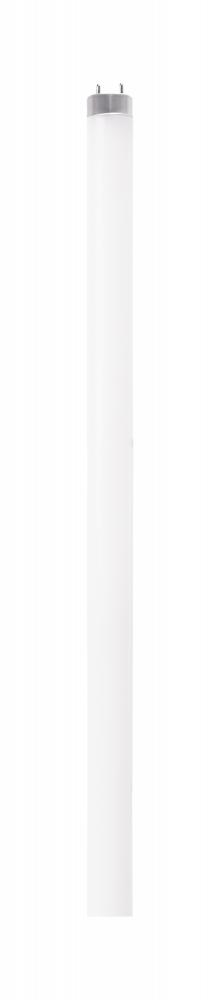

11 Watt T8 LED; 3000K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required
Image may not reflect selected features
/vendors/27/large/S11934.jpg
additional image
11 Watt T8 LED; 3000K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required (LNE9G)
11 Watt T8 LED; 3000K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required
Product Specification
Item #
LNE9G
Dimensions
Width: 1.00"
Additional product details
Internal #
LNE9G
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
1101-1600
Kelvin
2501-3000
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K
Bulb Shape
T8
Diameter
1
EA Length
35.7
Harmonized Codes
8539.52.0051
Length
36
Lumens
1600L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.34
Warranty
5 Year Limited - LED Type C Bulbs
Weight
0.34
AC/DC
120-277VAC 39VDC 290mA
Additional Info
Not for emergency lighting
BAA Compliant
No
Ballast Bypass Direct
Replace with external driver
Ballasting Requirements
Ballast replaced with external driver
Beam Spread
220
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0207
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
82
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Approved
Yes
DLC Classification
Standard
DLC ID
PLKYQJL6INEL
DLC Primary Use
2-lamp External Driver (UL Type C) Lamps
Efficacy
145.45 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Warm white light
Feature 2
Damp rated for indoor use
Feature 3
Enclosed Rated Lamp
Feature 4
L:36.00 D:1.00
Feature 5
T8, Frosted Finish
Flourescent Equivalent
25W
Incandescent Equivalent
50W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type C
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Long Description
SATCO|NUVO's S11934 11-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this
Material
Glass
Nominal Length
36
NSF Approved
ETL Sanitation listed (conforms to NSF)
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
R9 Value
6
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 11-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp de
SDS class
LED_Lamp
Short Description
11T8/LED/36-830/XD
Style
Utility
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
20%
Tube Guard Use
Yes
Wattage Selectable
No
Watts
11W
